Basket mill

Introduction:

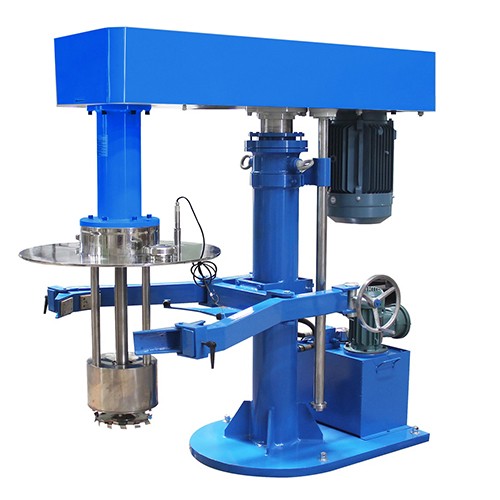

BKL series hydraulic lifting basket mill is designed for multi-batch, multi-variety, and multi-color production. It grinds and disperses the powder-liquid phase into a stable, uniform suspension in a single vessel. It is widely used in paint, ink, dye, pigment, pharmaceutical, paper, and electronic industries.

Working Principle:

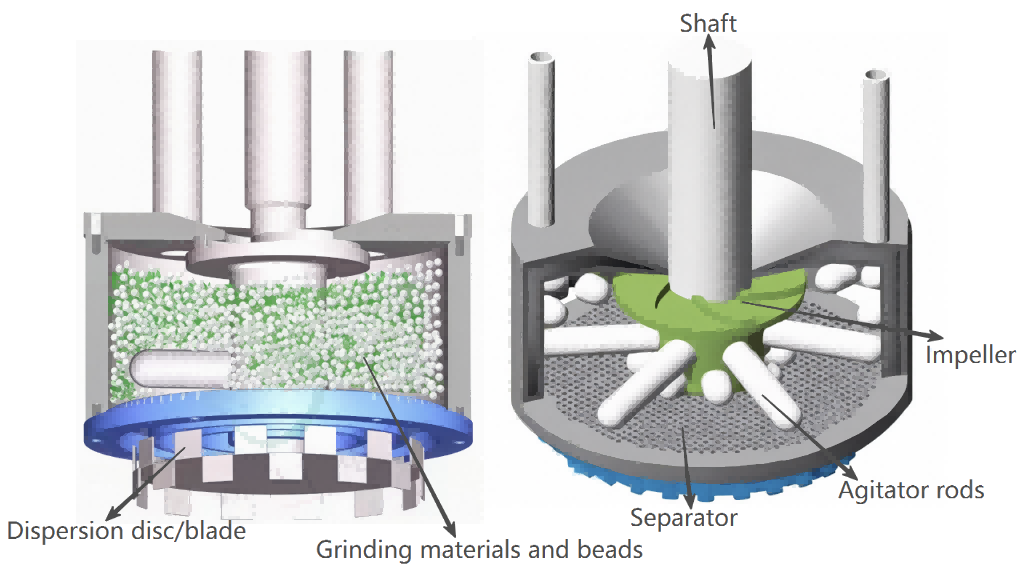

The hydraulic lifting basket mill combines dispersion and grinding in a single machine, performing pre-dispersion and fine grinding in one step without transferring material to a separate mill.

The process works in four stages:

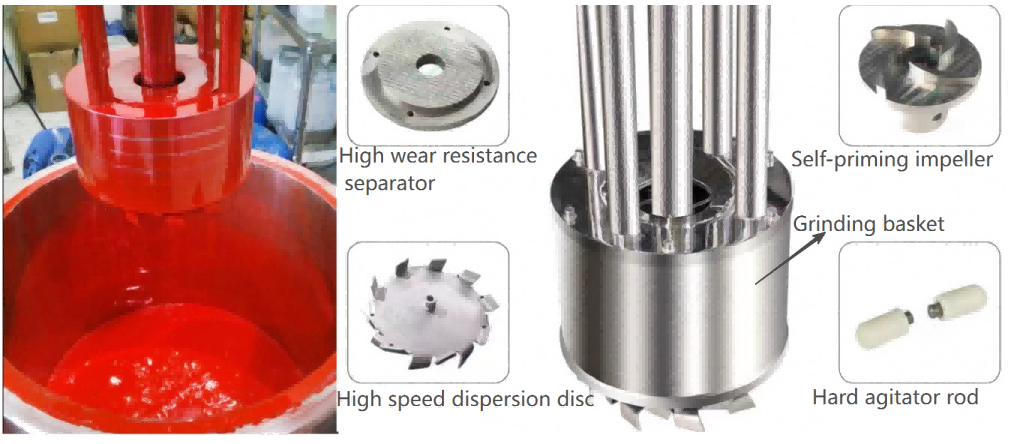

• Self-priming. A self-priming impeller at the basket inlet rotates at high speed, creating a strong eddy current that draws material into the grinding basket automatically.

• Grinding. Inside the basket, a pin-type rotor agitates the grinding media, reducing particle size through impact and shear forces.

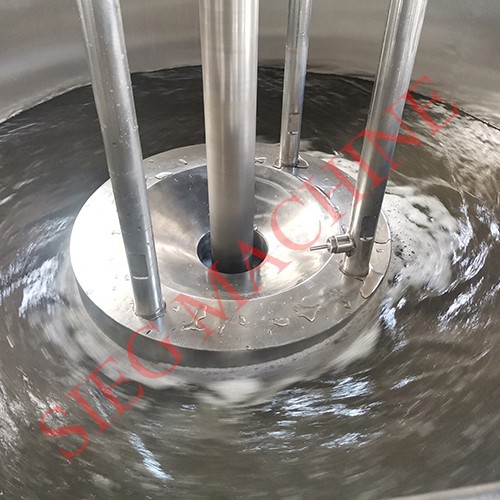

• Discharge and dispersion. After passing through the grinding zone, the material exits from the bottom of the basket. A high-speed dispersion disc beneath the basket further disperses and spreads the material.

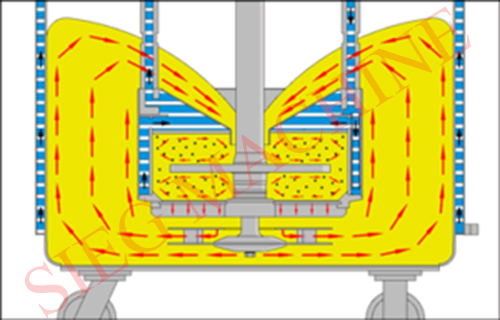

• Circulation. The eddy current drives continuous circulation through the basket, creating a high-efficiency cycle of suction, grinding, dispersion, re-suction, and re-grinding.

Key Features:

• Dispersion and grinding are completed in one container, with no additional pumps, pipes, valves, or tanks.

• Easy cleaning and fast changeover between batches.

• Low grinding media consumption, reducing operating cost.

• Rotor with high-strength grinding pegs for high wear resistance.

• High energy density for better grinding results.

• Immersion grinding makes operation extremely simple.

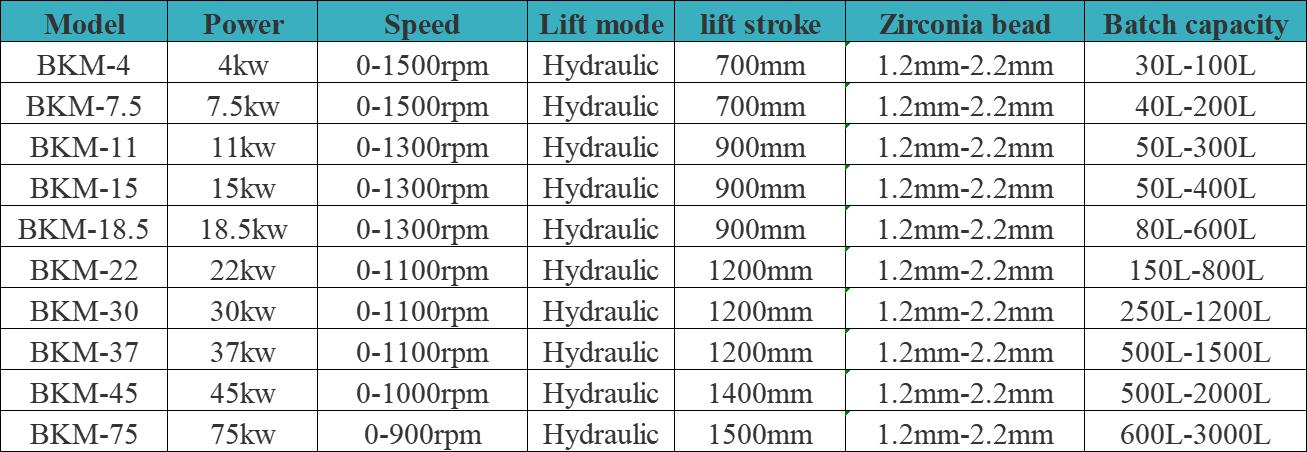

Technical Specification:

Note: The above data is for reference only. Actual grinding results may vary depending on material properties and formulation. Please contact our process engineers for a suitable model recommendation.

Options

• Basket material – SS304, SS316L, or ceramic-lined

• Temperature control – Jacketed container and basket for cooling or heating

• Vacuum working – Available for deaeration and solvent-free operation

• Sanitary design – Mirror polish, no dead corner,SS304/316L/ceramic contact parts

• Explosion-proof – Ex d IIB T4 or Ex d IIC T4 motor

• Lifting – Hydraulic (standard on BKM series)

• Control – Manual, PLC + HMI, or remote monitoring

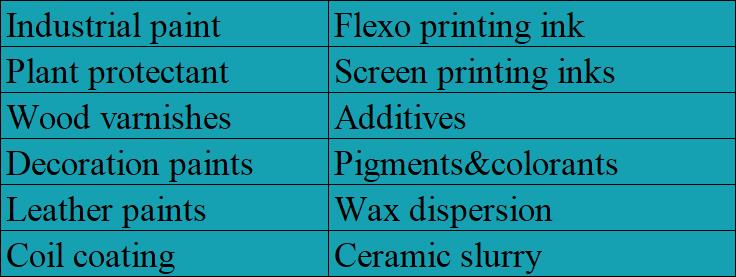

Typical Applications:

• Paint and coating – architectural, industrial, wood coating; water-based and solvent-based

• Printing ink – offset, gravure, flexographic, UV ink

• Pigment and dye – organic and inorganic pigment, color paste, titanium dioxide

• Pesticide – SC, liquid fertilizer

• Cosmetics – cream, lotion, foundation, lipstick, sunscreen

• Pharmaceutical – ointment, gel, oral suspension, dental filler

• Paper and electronic – paper coating, conductive paste, battery slurry

FAQ

What is the difference between a basket mill and a bead mill?
A basket mill grinds and disperses in the same tank, better for batch production and easier cleaning. A bead mill uses a sealed chamber for continuous, high-volume grinding.

What is a basket mill used for?
It is used for batch grinding and dispersion of paint, ink, pigment, pesticide, cosmetic, and pharmaceutical products.

What particle size can a basket mill achieve?
Typically 10–50 μm, depending on basket design, grinding media, and processing time.

How do I clean a basket mill between batches?

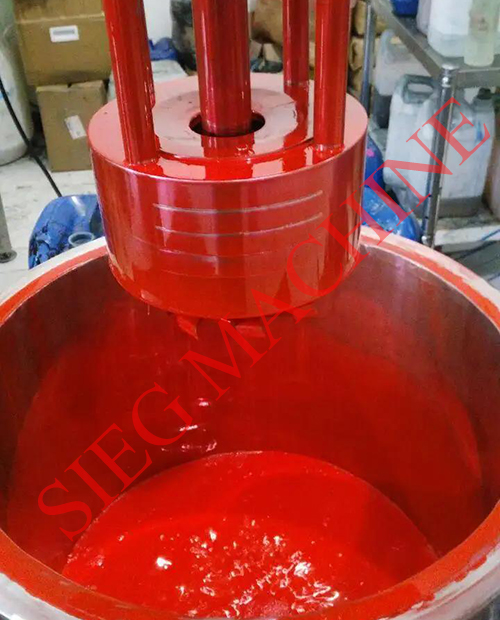

Raise the basket, flush it with solvent or cleaning liquid, and lower it into the next batch. Sanitary design with CIP is available for food and cosmetic production.

What is the price of a basket mill?
Depends on basket capacity, material, lifting type, and configuration. Send your requirements for a quote within 24 hours.

How to Choose

Tell us three things and we will recommend the right model:

• Your material and viscosity

• Target particle size

• Batch volume

We also offer lab testing before you commit to a production model.
